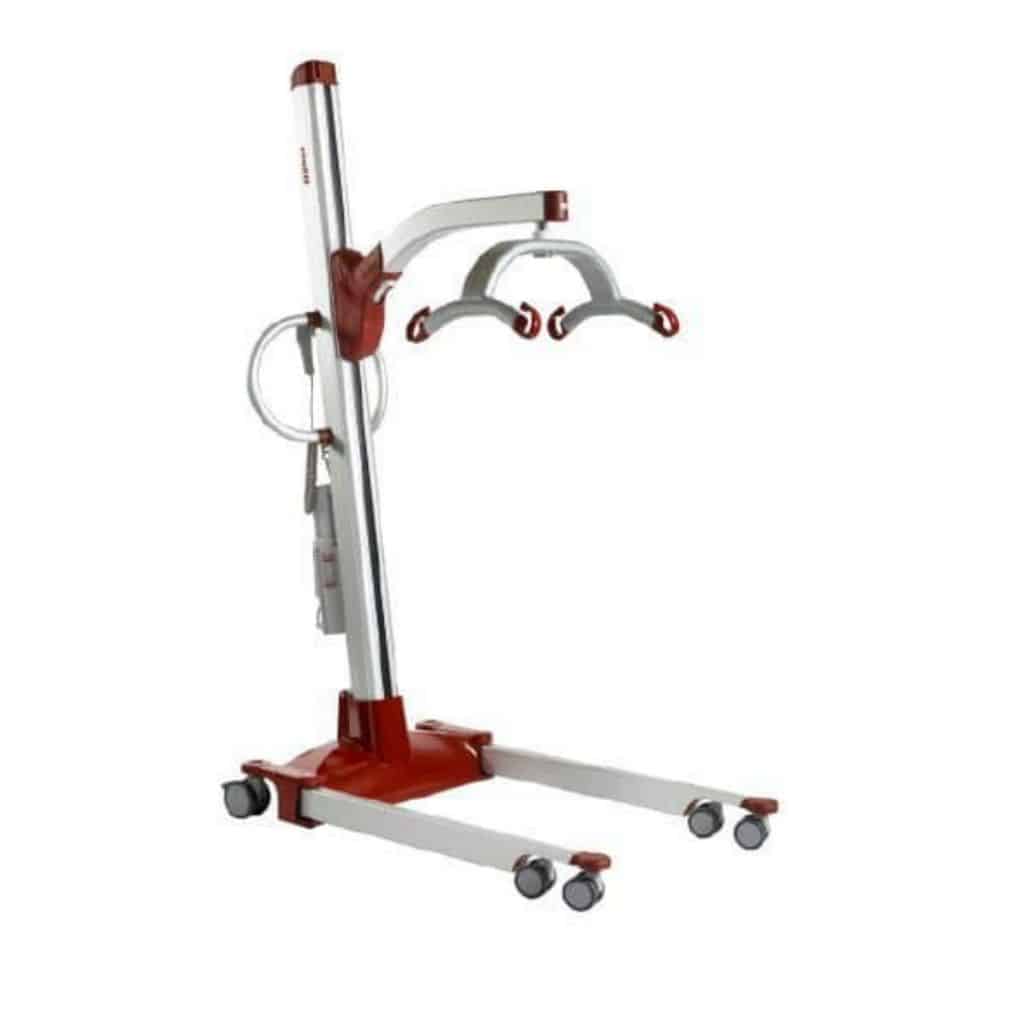

Molift Partner 255 Mobile Patient Hoist
The Molift Partner 255 patient lifter is designed for high-complexity situations in acute and critical care areas, found in hospitals and care facilities. Also available with additional Ambulating Arms, providing an ideal solution for gait training.
It boasts an impressive lifting range of 370 mm – 1790 mm (14.5” – 70.4”), allowing for easy lifting from the floor as well as high beds. The linear lifting pattern, in combination with the fixed suspension, ensures unrivaled stability during use. For user comfort, the Molift Partner 255 is compatible with the Molift 4-Point sling bar (sold separately), offering a comfortable and spacious lifting position. The vertical hoisting pattern keeps the user at an equidistant length from the column during the hoist, ensuring a safe and stable transfer. Despite its capabilities, the Partner 255 Standard is one of the lightest patient lifters in its category, weighing just 42.5 kg. Its excellent design and wheel geometry make it easy to maneuver. The lifter also features an overload sensor to prevent operation if the safe working load is exceeded, ensuring user safety.
Other safety features include a hinged lifting arm to prevent squeezing the user, an electrical emergency lowering function, and an emergency stop. The Molift Partner 255 is powered by environmentally friendly NiMH batteries. Due to the complex nature of this product, we have trained professionals who can provide assistance to ensure this equipment supports your needs. Please get in touch with us, and we will put you in direct contact with a product specialist in your area. It is available in standard or low base configuration to suit different needs. Please select your preferred option from the drop down menu when making an enquiry.
-
Impressive safe working load
- Spacious hoisting positioning
Key Features
- High-Complexity Situations: Designed for high-complexity situations in acute and critical care areas, found in hospitals and care facilities.
- Stable Hoisting: Vertical hoisting pattern keeps the user at an equidistant length from the column during the hoist, ensuring a safe and stable transfer.
- Easy Maneuverability: Excellent design and wheel geometry make it easy to maneuver.
- Environmentally Friendly Batteries: Powered by environmentally friendly NiMH batteries.
- Safety Features: Overload sensor to prevent operation if the safe working load is exceeded, hinged lifting arm to prevent squeezing the user, electrical emergency lowering function, and emergency stop.
- Comfortable Lifting Position: Compatible with the Molift 4-Point sling bar (sold separately), offering a comfortable and spacious lifting position. Lifting from the floor as well as high beds.
- Base Configuration Options: Available in standard or low base configuration to suit different needs.
Specifications
Dimensions
- Length: 1285 mm
- Leg height: 115 mm (standard) / 60 mm (low base)
- Width chassis, legs open inner: 1065 mm
- Width chassis, outer: 690 mm
- Product weight: 42.5 kg (standard) / 45 kg (low base)
Technical Specifications
- Rated performance: 50 hoists at 75 kg and 500 mm
- Hoisting height max: 1680 mm
- Hoisting height min: 390 mm
- Hoisting interval: 1290 mm
- Hoisting speed 75 kg (mm/sec): 30
- Battery: NiMh 26.4 V-2.6 Ah
- Battery charge time: 3 hours
- Material: Aluminium, steel
- Service Software: Molift Service Tool
Care Instructions
- Clean the product with a solvent-free cleaning agent with a pH level between 5–9, or with a 70% disinfectant solution.
Safety
- Maximum weight capacity: 255 kg
- Emergency stop
- Manual and electric emergency lowering
Warranty
- Molift lifter: 2 years
- Hand controls and batteries : 6 months
