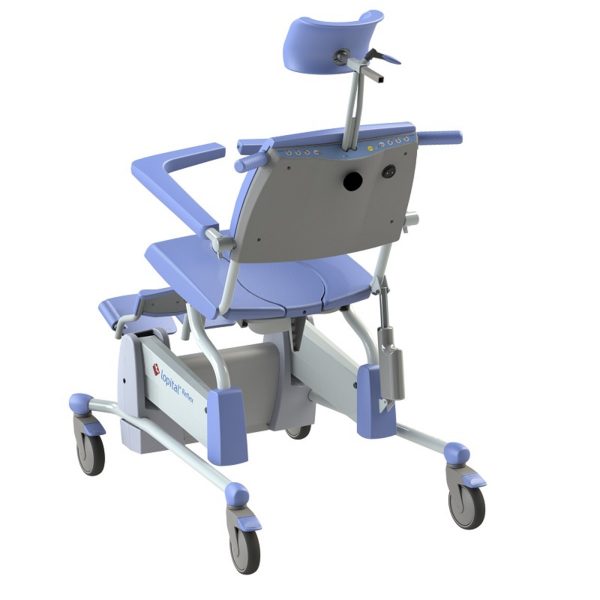

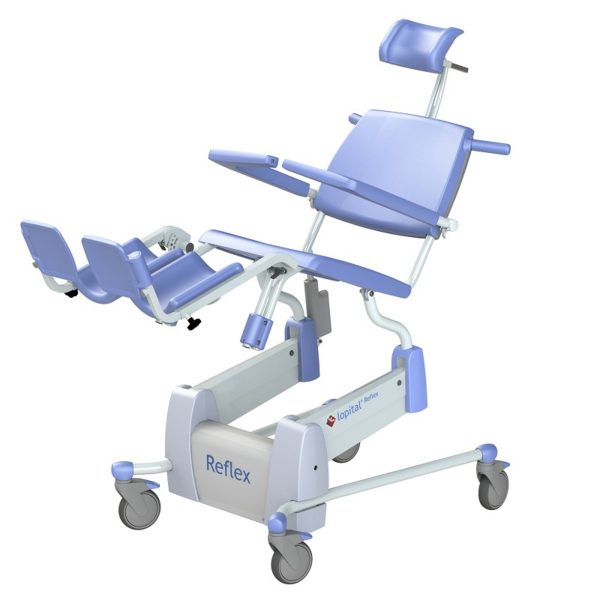

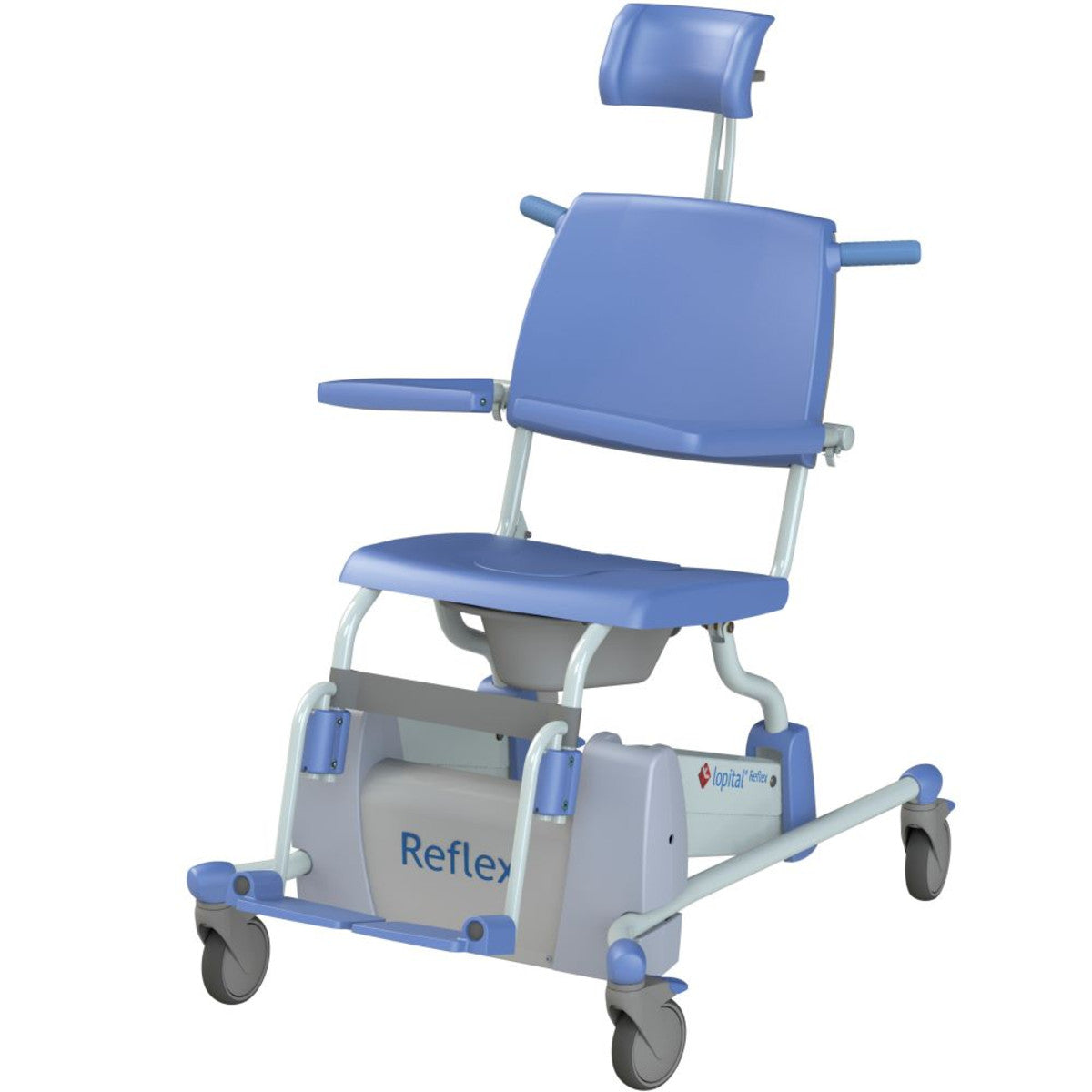

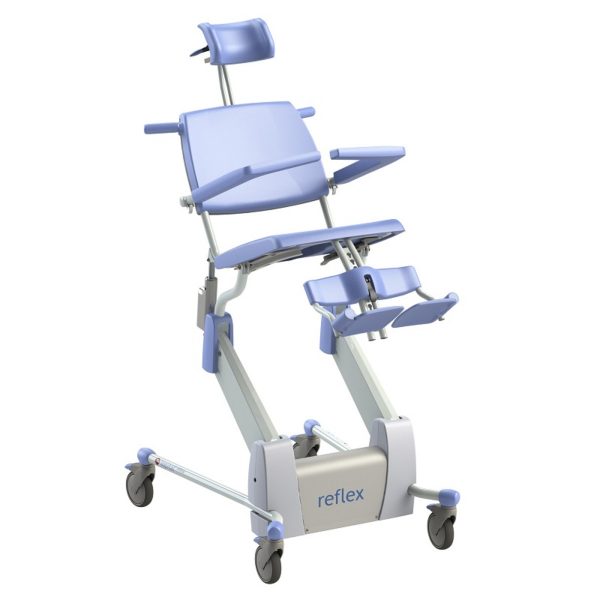

Lopital Reflex

AE1690CQ Centre Mount Footrest

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Shop Pay
Union Pay


  • Electrically operated height-adjustable settings (variable)
  • Electrically operated tilt mechanism
  • Easy-to-use touch controls on backrest

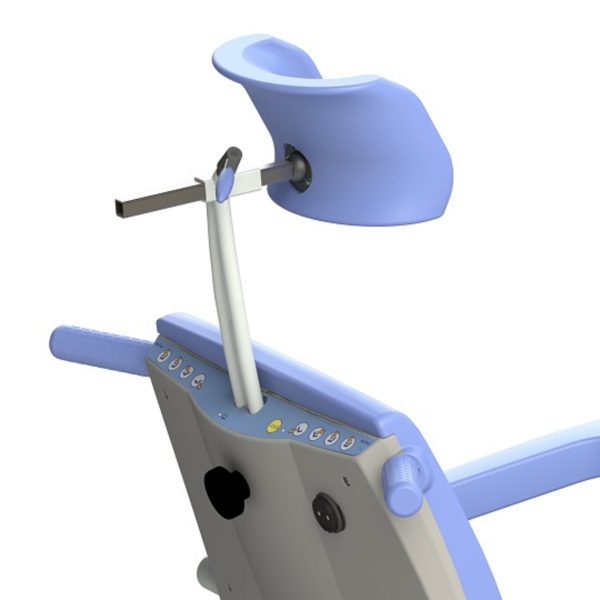

  • Height-adjustable headrest
  • Ergonomically designed backrest and seat
  • Height-adjustable legrest and calf protection
  • Foldable swivel armrests with front locking
  • Suitable for use in the shower and toilet
  • Can be moved into position over toilet
  • Slide for stainless steel commode pan
  • Four plastic castors with brakes
  • Easy to recharge with battery charger provided
  • Optional: Also available with hand control
  • Available with either centre mount footrest or swing away footrest


Overall Width – 700mm
Overall Length – 1060mm
Seat Width – 470mm
Seat Depth – 440mm
Seat Height Adjustment – 500-1000mm
Leg Adjustment – Every 25mm to total of 250mm
Backrest Height – 920mm
Variable Backrest Adjustment – 30º
Head/Neck Support Depth – 70mm
Head/Neck Support Height – 120mm
Net Weight – 53kg
Max User Weight – 135kg
Electric Controls – 24 Volt
Battery Capacity – 7Ah
Number of Lifting Actions – 40 up-down movements with fully charged batteries
Battery Charger – 220 Volt/50/60 Hz
